Quick Release Bowtie Yoke Emblem Inspection Cover for PA-28 Piper Cherokee
This is a 4-piece kit (2 frames, 2 emblems) intended to create quick access for inspection on the "bowtie" style yoke on PA-28 aircraft subject to FAA-AD 64-06-06.
Available in 7 variants

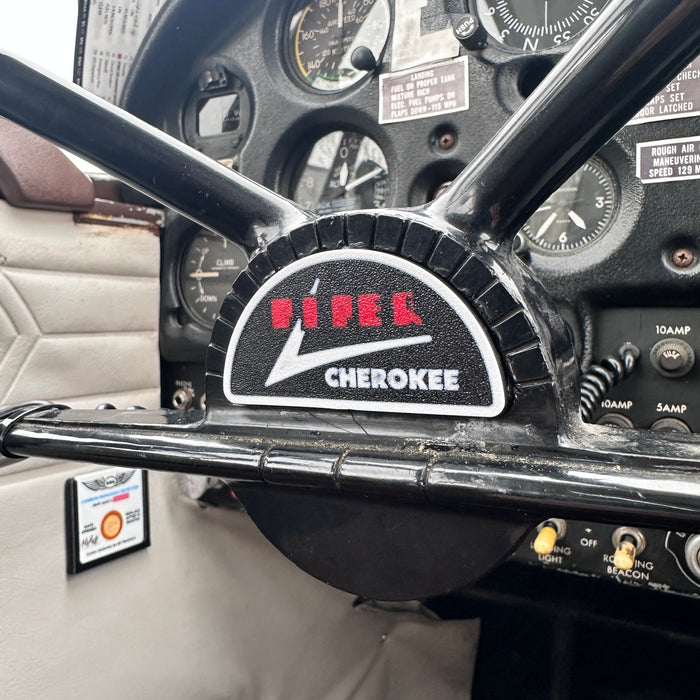

- Legacy - The original PA-28 yoke emblem design.
- Vintage "P" - The Piper logo with the oversized "P".

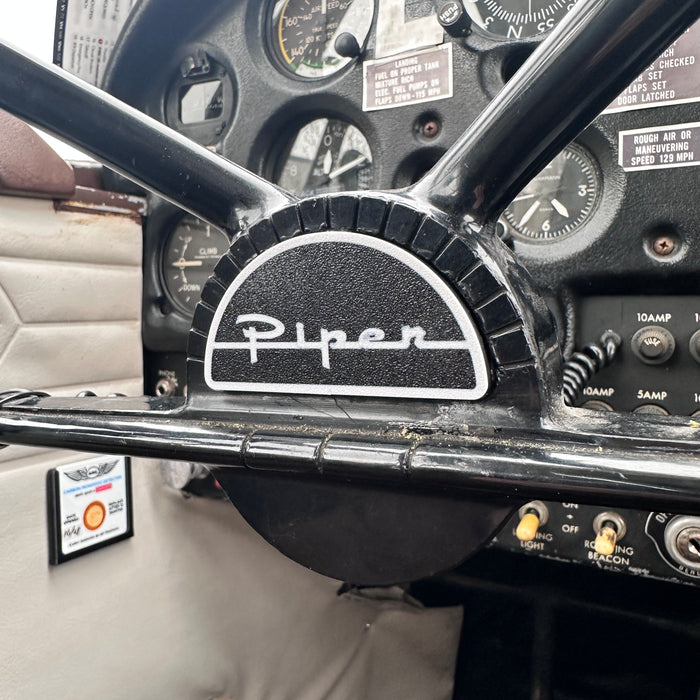

- Classic "Piper" - White connected font.

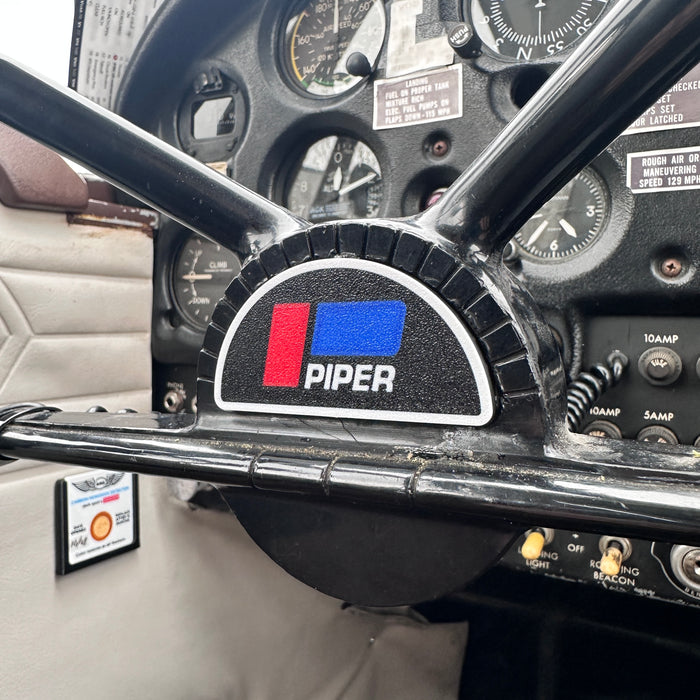

- Modern - The red/blue triangle logo currently used today.
- Blank - A plain black surface.

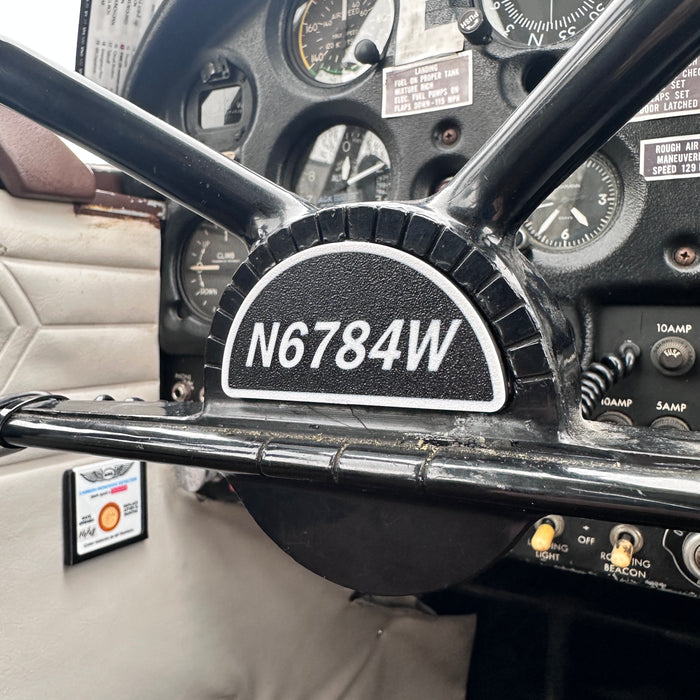

- N-Number - Your aircrafts registration number. Additional $10 fee. Send a message noting your order number and tail number using the "contact" page on our website.
- Custom design - Custom made to your needs, ideal for company logos or other unique situations. Additional $20 for first kit, standard pricing for each additional.
Industrial-grade 3D printed using ABS material for extreme heat resistance.
This kit does not satisfy FAA-AD 64-06-06 and will not alter the prescribed inspection schedule. This kit does expedite the inspection process by allowing rapid visual inspection to the center of the steering yoke.

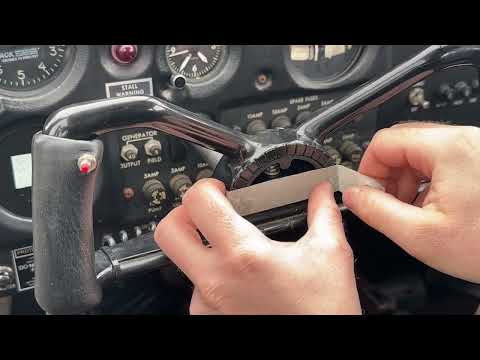

The frames are equipped with a 2mm strip of VHB 3M double-sided tape for installation, however many aircraft may have yokes which have adhesive residue from previous emblem installation which does not allow a sufficient mating surface for the tape. In this instance the double-sided tape should be removed and the frame should be glued or epoxied into place. The double-sided tape works best when applied in a warm ambient environment (~60F or greater).
The magnets included in this kit have been tested to have a negligible deviant effects on liquid-filled compasses further than 6" away. You should always check for deviance in your compass prior to installing this kit.
The kit will stick out 2.5mm from the yoke.
LIFETIME WARRANTY!
FAA-AD 64-06-06 is applicable to "bowtie" yoke equipped PA-28R-180\PA-28R-200\PA-28R-201\PA-28R-201T\PA-28RT-201\PA-28RT-201T\PA-28S-160\PA-28S-180\PA-28-140\PA-28-150\PA-28-151\PA-28-160\PA-28-161\PA-28-180\PA-28-181\PA-28-201T\PA-28-235\PA-28-236
