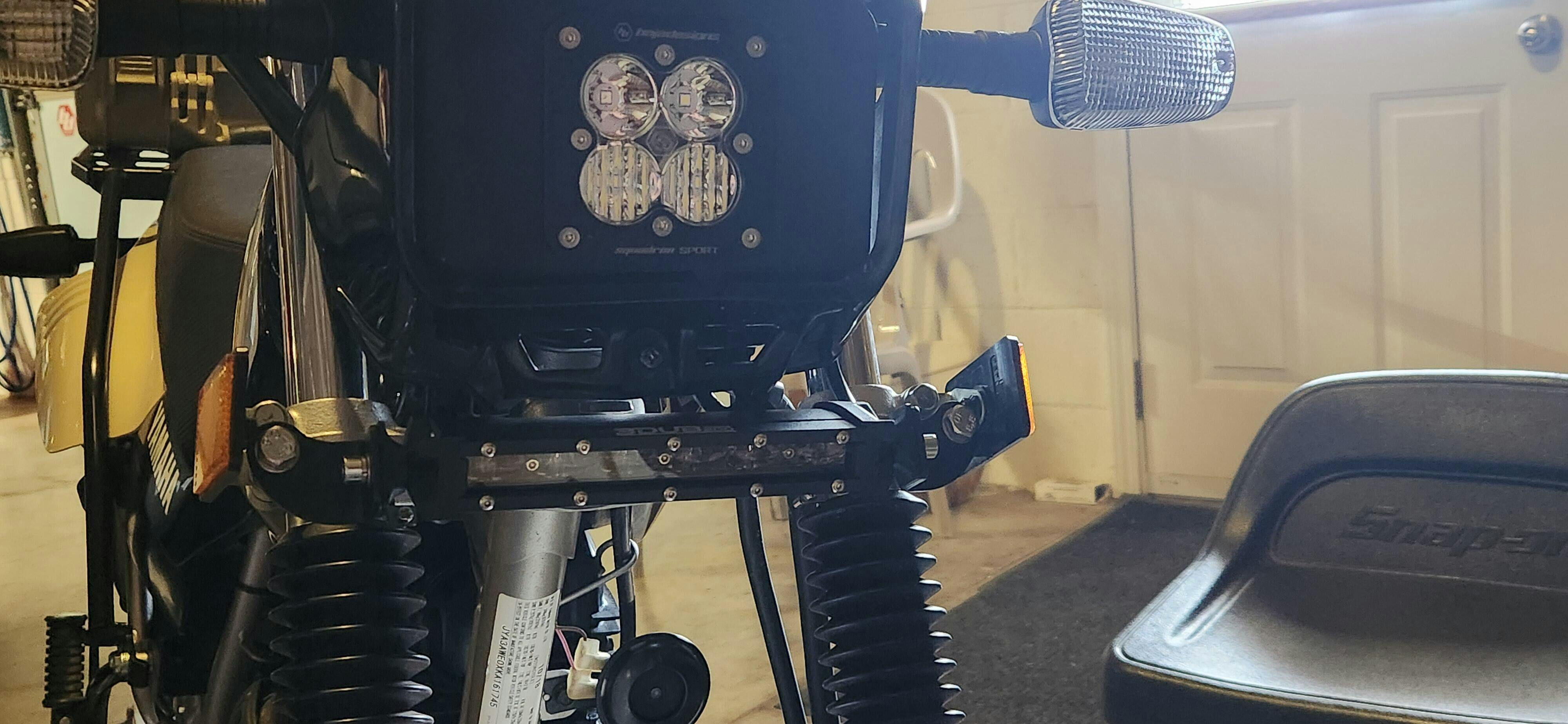

The Original Yamaha TW200 LED Light Bar Kit
Installation time: ~30 minutes
-30 Watt, LED Light Bar (See end of listing for Light bar specifications).
-Brackets and hardware pre-installed
-2 pairs of wire T-Taps for hooking up light bar to existing high-beam circuit*
-3 Allen keys for servicing light bar
Tools needed for install
-12mm Socket (OEM fork bolt size)
-13mm Socket (New fork bolt size)
-Basic electrical tools
*Disclaimer: This lightbar is intended for off-road use. By tapping into the original high-beam circuit for installation you are liable for violating any applicable road laws in your area. If you decide to use a dedicated circuit and switch for your light bar, I do sell a rocker switch mount for the TW200. This is the recommended method. You should never tie your LED light bar in with your normal daytime running lights.
Light Bar Specifications
1. Power: 3000 Lumens, 30W (6 pcs x 5W High Intensity LEDs)
2. Beam type: FLOOD 60 degree
3. Operating Voltage: 12V DC
4. Waterproof rate: IP 67
5. Color Temperature: 6000K White
6. Working Temperature:-45 ~+85°C
7. Material: Diecast aluminum alloy housing
8. Lifespan: Over 50,000 Hours
Light bar has a 1-year craftsmanship warranty. Warranty does not cover damage due to incorrect wiring or damage due to accident/operator error.
-If you are having trouble getting the bolts to thread into the suspension fork, try loosening the upper bolts which hold on the reflector bracket. They are often misaligned which will then catch on the new bolts.
-If you are having trouble getting your new bolts to tighten (and hold the lightbar secure) then the long spacer nut needs to be adjusted (loosened or tightened) as it is binding up.
-If you are finding that any of the bolts loosen over time, apply a small amount of thread-locker paste to the threads of the bolts.
-If your lightbar needs to be adjusted up or down, you can manually adjust it by applying force with your hand.
